GEMM
Every shock, drop, and vibration, when it happened, how far it fell, and which corner hit.
A closer look at the GEMM
Video description

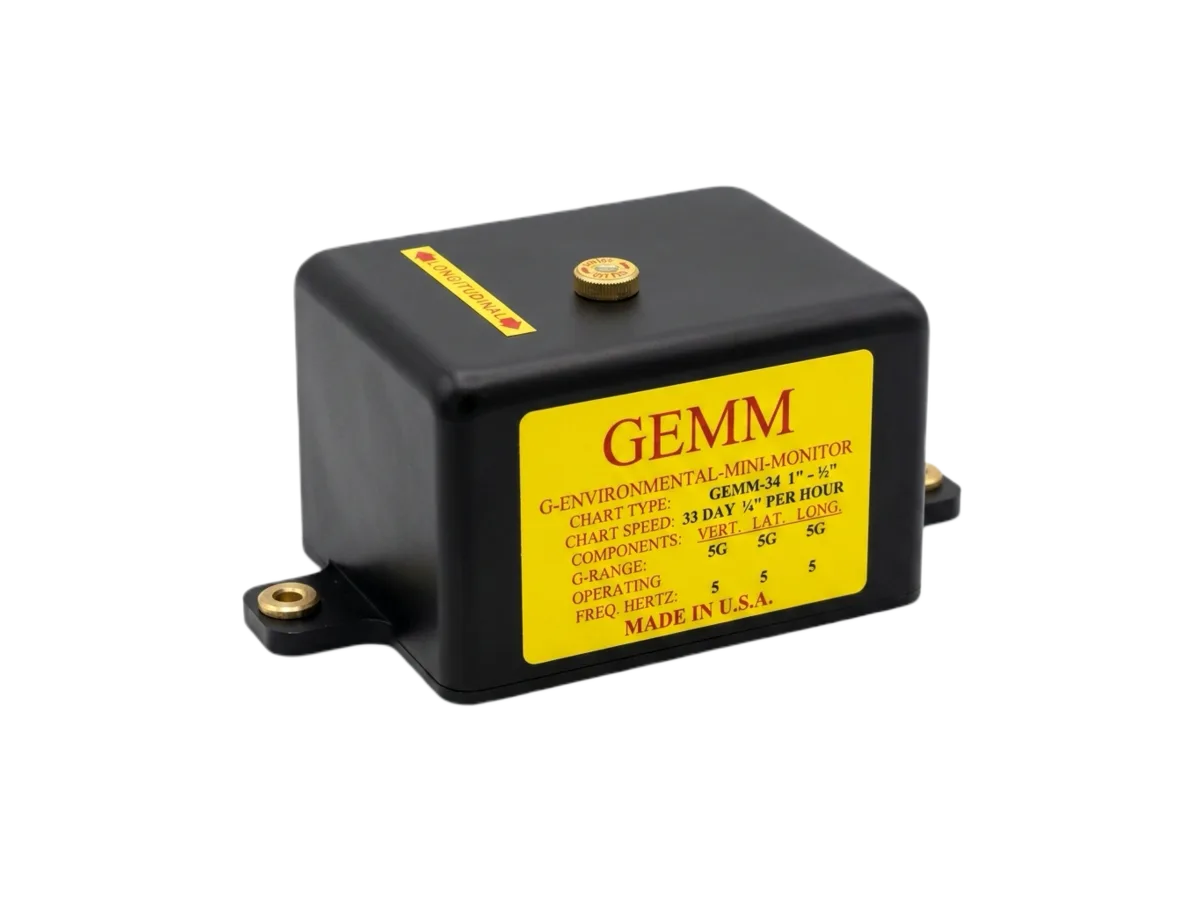

GEMM: a 15-second film with music and no speech. White-background views show the recorder, a close-up of the control knob and direction marker, and the front label. The film closes with “Make the journey part of the record” and impactregister.com.
The GEMM packs multi-axis recording into a compact monitor sized for crated equipment and smaller high-value freight. Its wax-coated, time-stamped chart captures the full story of a shipment, including the detail that settles arguments: a drop's timing, height, and point of impact. When a receiving dock says "it arrived that way," the GEMM chart says exactly when "that way" happened.
| Axes recorded | Multi-axis: time, direction, and magnitude of all shocks and vibration |
|---|---|
| Drop detection | Records drops, when they occurred, from how far, and on which corner |
| Chart | Wax-coated, time-stamped chart |
| Chart speeds | 14, 30, 60, and 90 days |
| Power | No battery is needed for G-force sensing. A battery powers the motor that advances the chart. |
Custom configurations: ask an engineer.
Manuals and guides for the GEMM
Select the document you need to request the current version from our team.
GEMM operating manual
Setup, chart handling, and mounting for the multi-axis mini-monitor.
Request this document →DocumentationGEMM chart interpretation guide
Reading the wax-coated chart: drop timing, height, and point of impact, with annotated samples.
Request this document →DocumentationG-range selection guide
Choosing thresholds by cargo type, weight, and packaging.
Request this document →DocumentationCalibration & accuracy documentation
Static and dynamic calibration records for your quality file.
Request this document →Compare with related products
Common applications
Get started with the GEMM.
Request a quote, or contact our engineering team with configuration questions.
We supply direct, through packaging integrators who specify our instruments inside their crating, and through distributors in importing markets.
